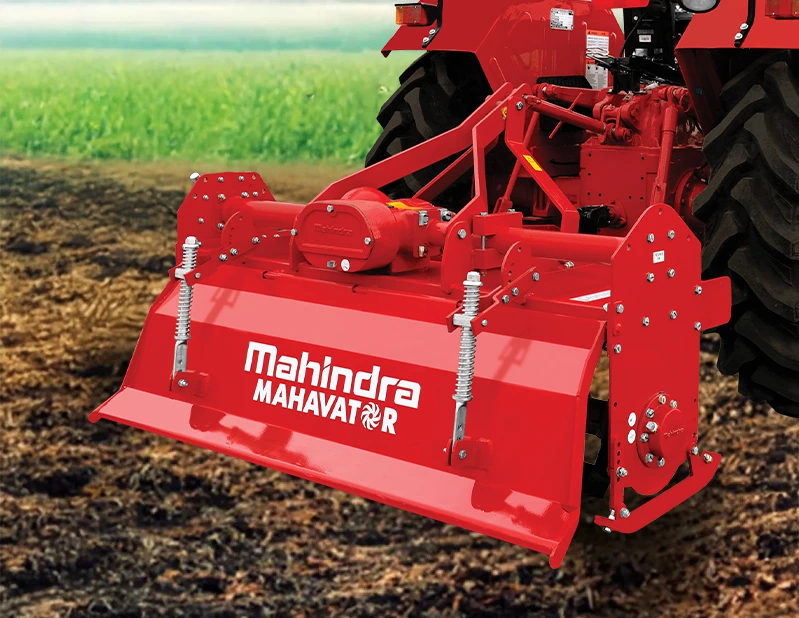

Mahindra Mahavator : Heavy Duty Rotavator

Mahindra Mahavator is a heavy series rotary tiller/rotavator designed for excellent performance and durability in a range of tough conditions. The Mahavator delivers superior performance in medium to heavy soils, in both wet and dry conditions. It deals well with tough crop residue, doing an excellent job of cutting and mixing of crop residue in crops such as sugarcane and cotton in a range of hard soils. This rotavator is compatible with a wide range of tractors.

FEATURES

FEATURES

SPECIFICATIONS

Parameter 1.6 m 1.8 m 2.1 m 2.3 m 2.5 m
Suitable Tractor (kW) 33 - 37 37 - 41 41-45 45-48 48-52
(HP) (45-50) (50-55) (55-60) (60-65) (65-70)
Working width, plate in to in (mm) 1636 1889 2142 2340 2647
Total width (mm) 1801 2054 2307 2505 2812
Tilling width, blade out to out (mm) 1544 1797 2050 2249 2556
Total length (mm) 951 951 951 1069 1020
Total height (mm) 1149 1149 1149 1155 1149
Working depth (mm)* 100-140 100-140 100-140 100-140 100-140
Number of blades 36 42 48 54 60
Blade compatibility L/C L/C L/C L/C L/C
Primary gear box Multi speed Multi speed Multi speed Multi speed Multi speed
Side transmission Gear drive Gear drive Gear drive Gear drive Gear drive
Weight, without propeller shaft (kg) 438 480 506 570 610
Standard speed gears 17/21 17/21 17/21 17/21 17/21
*Depth will differ, depending on soil conditions Technical specifications are subject to change due to continuous improvements on products.
