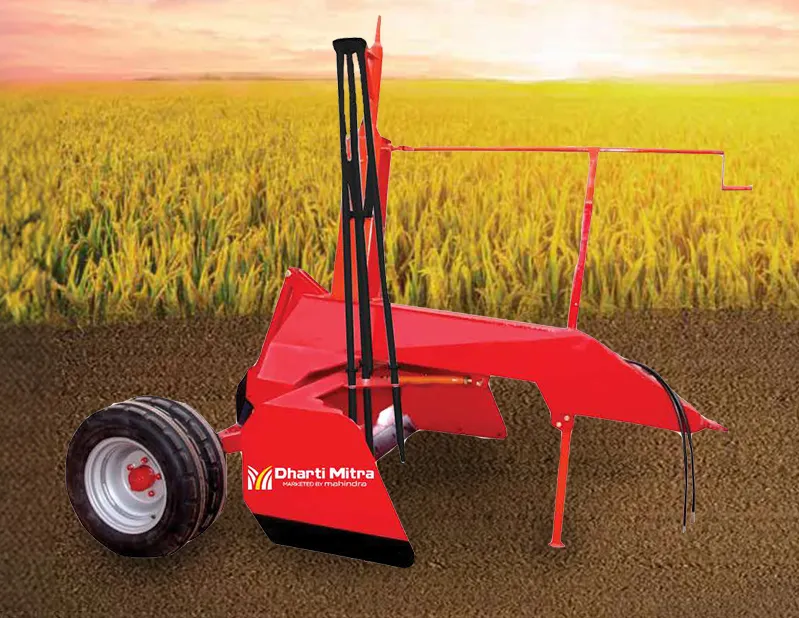

Dharti Mitra Laser Leveller by Mahindra
Say hello to precision at your fingertips! Meet the Dharti Mitra Laser Land Leveler, a cutting-edge product proudly presented by Mahindra. This leveler offers a simplified solution to your old school leveling tries with its laser beam guidance. Rest assured of getting the desired slope throughout your field, improving water management and resulting in a higher yield. With this, leveler in your arsenal, farming becomes much more manageable and productive. Choose the Dharti Mitra Laser Land Leveler for an easier and more effective farm leveling experience.
SPECIFICATIONS
Know More About the Specification
Dharti Mitra Laser Leveller by Mahindra
| Product Name | Tractor (kW)(HP) | Bucket Size(m)(ft) | Bucket Type | SCRAPPER THICKNESS (mm) | SIDE PLATE THICKNESS (mm) | Wheel Type | Tyre Size(in) | Mast Type | Blade Type | Electronic Unit Type | Transmitter operating Range (Diameter in mm) | Operating Temparature (degree celsius) | Rotational Speed (r/min) | Control Panel Power I/P, O/P | Receiver Beam Reception Angle (degree) | Receiver Operating Range (m) | Weight(Approximately) kg | Length (mm) | Width (mm) | Height (mm) | Laser Beam Reception | Laser Beam Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.5ft | 40/30 & Above | 6.5/2 | Standard | 8 | 10 | Straight | 6 x 16 | Handle / Power | Flat Blade | Zero Level / Dual Slope | 1000 | -10 to 60 | 600 | 12V DC | 360 | 400 | 600 | 3340 | 2000 | 2370 | 360° | Red Laser |
| 7ft Standard Bucket | 40/30 & Above | 7/2.1 | Standard | 10 | 10 | Straight | 6 x 16 | Handle / Power | Flat Blade | Zero Level / Dual Slope | 1000 | -10 to 60 | 600 | 12V DC | 360 | 400 | 600 | 3340 | 2200 | 2370 | 360° | Red Laser |
| 7ft Sports Bucket | 40/30 & Above | 7/2.1 | Standard | 10 | 10 | Straight | 6 x 16 | Handle / Power | Flat Blade | Zero Level / Dual Slope | 1000 | -10 to 60 | 600 | 12V DC | 360 | 400 | 600 | 2800 | 2200 | 3300 | 360° | Red Laser |
| 7ft Sports Zig-Zag Wheel Bucket | 40/30 & Above | 7/2.1 | Standard | 10 | 10 | Straight | 6 x 16 | Handle / Power | Flat Blade | Zero Level / Dual Slope | 1000 | -10 to 60 | 600 | 12V DC | 360 | 400 | 750 | 3300 | 2200 | 3300 | 360° | Red Laser |
| 7ft Bahubali Zig-Zag Wheels | 45/34 & Above | 7/2.1 | Bahubali | 10 | 10 | Zig-Zag | 6 x 16 | Power | Flat Blade | Zero Level | 1000 | -10 to 60 | 600 | 12V DC | 360 | 400 | 700 | 3300 | 2200 | 2500 | 360° | Red Laser |
| 8ft Sports Zig-Zag Wheels | 55/41 & Above | 8/2.4 | Sports | 10 | 10 | Zig-Zag | 6 x 16 | Handle /Power | Flat Blade | Zero Level | 1000 | -10 to 60 | 600 | 12V DC | 360 | 400 | 770 | 3300 | 2500 | 3300 | 360° | Red Laser |
| 8ft bucket, Sports Bucket model | 55/41 & Above | 8/2.4 | Sports | 10 | 10 | Straight | 6 x 16 | Handle / Power | Flat Blade | Zero Level / Dual Slope | 1000 | -10 to 60 | 600 | 12V DC | 360 | 400 | 680 | 3300 | 2500 | 3300 | 360° | Red Laser |
| 8ft Bahubali Zig-Zag Wheels | 55/41 & Above | 8/2.4 | Bahubali | 10 | 10 | Zig-Zag | 6 x 16 | Power | Flat Blade | Zero Level | 1000 | -10 to 60 | 600 | 12V DC | 360 | 400 | 730 | 3300 | 2500 | 2500 | 360° | Red Laser |
